The balcony aluminum sliding door now defines spatial quality in residential and hospitality architecture. Its adoption rests on two facts: users demand unobstructed views, and extrusion technology delivers load-bearing profiles at minimal visual width. In 2026, ultra-slim frames are standard in premium projects—baseline specification, not upgrade.

Section Geometry Determines Structural and Thermal Performance

Interlock sightlines of 20–30 mm versus 50 mm+ in conventional profiles result from systematic cross-section optimization. 6063-T5 aluminum, multi-chamber hollow sections, and ≥2.0 mm wall thickness increase section modulus to offset material reduction. Glass-to-frame ratio exceeds 90 %, producing panoramic views. Wind load resistance of 2.5 kPa per finite element analysis covers high-rise balcony applications without supplementary mullions.

Thermal performance depends on the same geometry. Polyamide thermal breaks within multi-chamber extrusions interrupt heat flow. Narrower profiles do not inherently reduce thermal efficiency; chamber geometry and break width are decisive—not overall frame thickness. Two profiles with identical sightlines can differ substantially in U-value based on internal configuration.

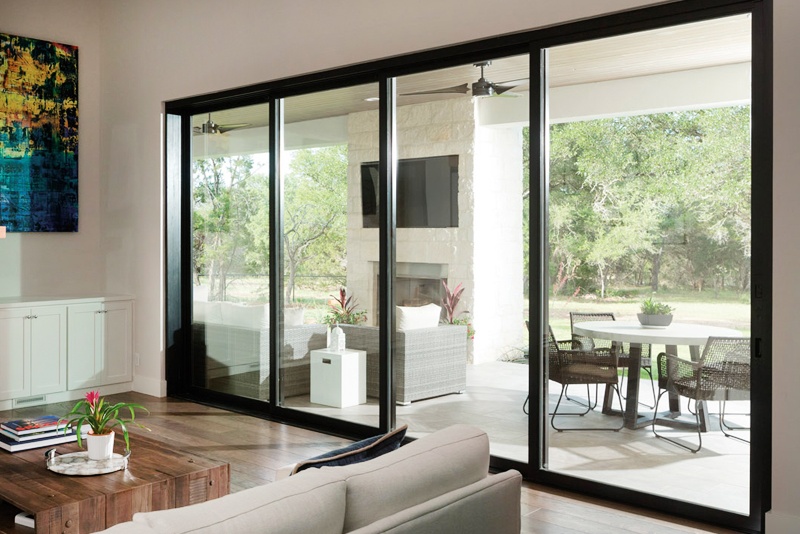

Minimalist Slim-Frame Aluminum Balcony Door

Hardware Type Determines Operability and Sealing

Standard sliding supports panel weight directly on rollers; static friction increases linearly with mass. Practical handling limit: approximately 100 kg. Above this, push-pull force becomes prohibitive for daily use.

Lift-and-slide elevates the panel 8 mm upon handle rotation, transferring weight to a bearing plate. Rolling resistance drops to a fraction of total mass. Panels up to 400 kg—standard for 3 m-high balcony glazing—require under 5 kg of manual force. The same mechanism enables compression sealing: panel descent compresses the perimeter gasket, achieving air permeability Class 4 and water tightness Class E (EN 12207/12208). Standard sliding, with brush seals and track drainage, attains lower ratings.

Decision rule: specify lift-and-slide for panels >2.5 m in height or >120 kg in weight. Below these thresholds, standard sliding may be considered where budget constraints exist, but sealing performance—particularly under wind-driven rain—remains inferior.

Threshold Height Affects Access and Perceived Space

Raised thresholds (30–50 mm) accommodate drainage and thermal breaks but create barriers and visual interruption.

Low-step (20 mm) retains drainage and reduces fall risk. Assisted-living data: 70 % fewer entry incidents when step height drops from 50 mm to 20 mm.

Flush/zero-threshold places interior and exterior surfaces coplanar. Requires integrated drainage but eliminates all barriers. Perceived area expands by removing visual boundary at the sill—consistent occupant survey finding.

Application guidance: flush for universal design-certified projects and ground-floor residential access. Low-step for balcony applications where full accessibility is not mandated.

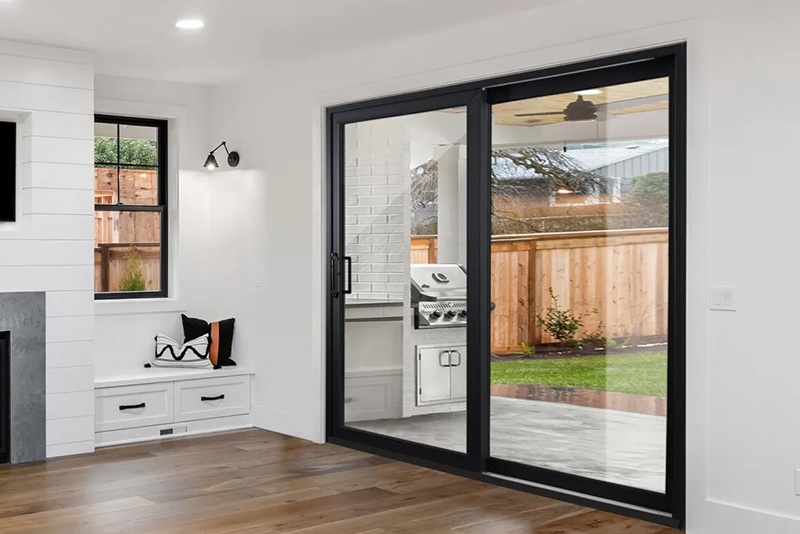

Minimalist Slim-Frame Aluminum Balcony Door

Finish Selection: Three Methods, Distinct Applications

Powder coating: thermoset polymer, electrostatic application, cured at 180–200°C. Any RAL color, UV-stable, abrasion-resistant. Default for exteriors due to color flexibility and cost. Custom colors at minimal premium.

Anodizing: electrochemical oxidation producing integral metallic oxide layer. Surface hardness 350–500 HV, exceeding powder coating in scratch resistance. Narrower color range: bronze, champagne, silver, black. Specified where metallic texture and cleaning-agent durability are priorities—particularly high-traffic commercial interiors.

Wood-grain transfer: sublimation printing of timber patterns. Retains aluminum’s structural and weathering properties. Warm visual texture. Specified for biophilic or warm-toned contexts. Durability comparable to powder coating when sealed.

2026 color demand: charcoal (RAL 7016) and matte black (RAL 9005) dominate residential and commercial facades. Ivory (RAL 1013) for classic and warm-toned buildings. Champagne gold in hospitality and retail. Two-tone finishing—different colors per face—increasingly specified for independent coordination with interior design and external cladding.

Selection criteria: powder coating is default for most projects. Anodizing when scratch resistance and metallic finish are priorities. Wood-grain when timber aesthetics are required without wood’s maintenance burden.

Four Performance Parameters Guide Specification

Specifying a balcony aluminum sliding door requires evaluation against four metrics:

Wind load resistance: ≥2.0 kPa for high-rise balconies and coastal zones. Lower values may suffice for sheltered ground-floor locations. Local codes set minimums.

Thermal transmittance: ≤1.6 W/m²K for energy-certified and passive house projects—achieved through thermal break design and insulated glazing. Standard projects may accept higher values.

Hardware cycle life: ≥20,000 cycles per EN 13126 for residential use. Commercial and hospitality often require ≥50,000 cycles.

Finish durability: ≥500 hours salt spray for coastal and urban pollution zones. Sheltered inland locations may accept shorter durations.

Acoustic insulation (laminated glass or enhanced gaskets) and fire-resistance modifications are project-specific—outside generic guidelines.

Minimalist Slim-Frame Aluminum Balcony Door

Market Data Reinforces Specification Direction

The slim-profile sliding door segment reached USD 4.2 billion in 2024, with 8.3 % CAGR projected through 2033. Sliding mechanisms exceed 45 % of European patio door installations, surpassing folding doors in residential and hotel sectors. Specifications for narrow-sightline doors rose 12 % year-over-year, driven by consumer preference for natural light and unobstructed views—factors empirically linked to higher metropolitan property valuations. This positions sliding doors as architectural features that define spatial quality, not mere openings.

Conclusion

The ultra-slim balcony aluminum sliding door synthesizes extrusion engineering, hardware design, and minimalist aesthetics. Sightlines of 20–30 mm, lift-and-slide mechanisms supporting 400 kg panels, and thresholds down to 20 mm collectively address visual openness and functional performance. With building codes and occupant expectations emphasizing transparency, accessibility, and energy efficiency, the minimalist sliding door design remains integral to contemporary architecture. For project specifications and case documentation, Kanod provides engineering consultation and customization—resources accessible via company gallery and showroom. Technical background on aluminum alloy properties is available through standard materials references . Related product lines are listed in the doors category.
