Introduction

Casement windows are specified across residential and light commercial construction. Hinged sash operation enables full-area ventilation, unobstructed sightlines, and perimeter compression sealing that reduces infiltration. These performance characteristics distinguish casement units from sliding and double-hung alternatives. The term “casement” covers several configurations, differentiated by hinge axis orientation. Side-hung, top-hung (awning), and bottom-hung (hopper) types exhibit distinct responses to airflow, rainwater exposure, and spatial limitations. This guide presents a comparative analysis of the three variants, with selection parameters derived from room usage, climatic conditions, and building geometry.

Casement Window Fundamentals

A casement window comprises a single sash attached to the frame via hinges along one edge. Operation consists of outward or inward swinging motion—no sliding track is involved. Closure compresses the sash against a continuous seal running the full frame perimeter, limiting uncontrolled air exchange. Locking hardware engages at two or more points, delivering greater forced-entry resistance than single-point sliding window latches.

Three hinge positions define the principal categories:

• Vertical hinge at left or right jamb → side-hung;
• Horizontal hinge at top rail → top-hung (awning);
• Horizontal hinge at bottom rail → bottom-hung (hopper).

Each configuration generates unique airflow behaviour, rainwater deflection capability, and cleaning access. These operational differences determine appropriate installation settings.

Side-Hung, Top-Hung & Hopper Guide

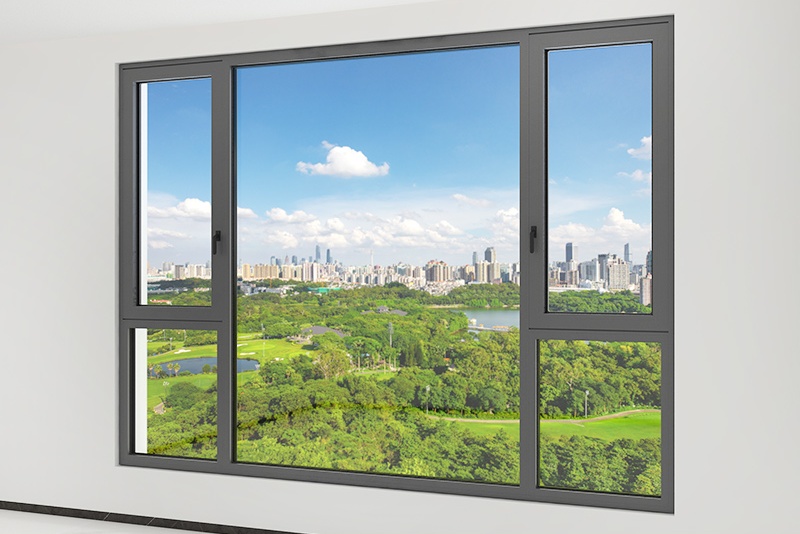

Side-Hung Casement Windows

Side-hung casement windows position hinges on the left or right vertical jamb. Sash swings outward in a door-like arc, employing the entire sash area as the open aperture.

Airflow and sightlines – Full-open sash captures lateral breezes effectively. Absence of central vertical mullions preserves uninterrupted exterior views. Living rooms, bedrooms, and dining areas derive maximum benefit—ventilation and outward visibility carry equal priority in these spaces.

Configuration options – Single-leaf units suit narrow openings. Paired sashes with a fixed central panel create balanced compositions for wider apertures. Orientation towards prevailing wind direction maximises passive cooling performance in regions with consistent airflow patterns.

Sealing and security – Closing handle activates compression across the full sash perimeter. Multi-point locking—engagement at two or three positions—offers substantially enhanced resistance compared to conventional sliding mechanisms.

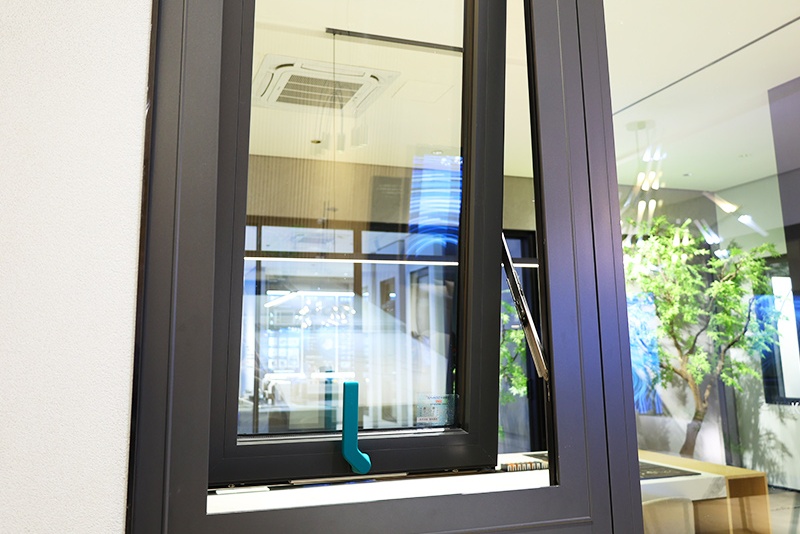

Top-Hung Casement Windows (Awning Windows)

Top-hung casement windows, designated as awning windows, mount hinges along the top rail. Sash projects outward from the bottom edge upon opening, forming an angled canopy above the aperture.

Rain-defended operation – Outward tilt deflects rainwater away from the interior opening. Continued operation during light precipitation remains viable without water penetration. This feature suits kitchens, bathrooms, and laundry facilities—environments demanding continuous moisture extraction alongside external water exclusion.

Spatial and privacy attributes – Width-to-height ratios typically exceed unity, accommodating installation above worktops, sinks, or beneath window heads with restricted vertical clearance. For ground-floor applications requiring visual privacy, elevated wall placement admits fresh air while blocking exterior sightlines.

Facade integration – Top-hung units combine readily with fixed glazing panels or side-hung sashes within a single elevation. Mixed assemblies address multiple functional requirements while maintaining facade uniformity.

Side-Hung, Top-Hung & Hopper Guide

Bottom-Hung Casement Windows (Hopper Windows)

Bottom-hung casement windows, commonly termed hopper windows, hinge at the bottom rail. Sash tilts inward from the top, opening into the interior volume.

Airflow control and hazard mitigation – Inward tilt restricts the opening aperture, an advantage in basements, plant rooms, and upper-level bedrooms. Outward projection is eliminated, preventing conflicts with passageways, external fixtures, or adjacent structures. Inward swing also removes fall hazards from elevated installations, as the sash remains within the building envelope.

Maintenance access – Interior access to both glass surfaces is enabled by inward opening. This simplifies cleaning for windows positioned above stairwells, within shallow lightwells, or other difficult-to-reach locations.

Application contexts – Hopper windows are specified for below-grade spaces requiring ventilation alongside stringent ground-level security. Corridors and service areas with insufficient exterior clearance for outward-swinging designs also adopt this configuration.

Selection Parameters for Casement Window Styles

Selection among the three hinge configurations involves evaluating room function, climate, and structural constraints in combination.

Room function – Side-hung windows optimise airflow and visual connection in living and sleeping areas. Bathrooms and kitchens, subject to elevated humidity and odour loads, perform more effectively with top-hung awning units enabling rainproof operation. Basements and service corridors typically specify bottom-hung hopper windows for controlled airflow, security, and cleaning practicality.

Climate conditions – Frequent rainfall favours top-hung designs, operable during showers without water ingress. Dry, breezy climates allow side-hung units to capture maximum natural airflow. Hopper windows exhibit less climate dependence but suit dense urban contexts with minimal external clearances.

Structural constraints – Narrow horizontal wall bands accommodate top-hung awning windows. Shallow exterior clearances necessitate bottom-hung hopper designs. For large openings with adequate wall depth, side-hung pairs deliver a classic functional solution.

Visual alignment – Side-hung windows present a traditional, symmetrical elevation. Top-hung units offer a clean, contemporary profile. Bottom-hung hoppers remain discreet and utilitarian. Style selection should reinforce the building’s architectural language.

Side-Hung, Top-Hung & Hopper Guide

Conclusion

Each hinge orientation yields a distinct combination of ventilation characteristics, weather protection, and spatial efficiency. Side-hung windows maximise airflow and exterior visibility for primary living spaces. Top-hung awning windows provide rain-safe ventilation for wet areas and constrained wall zones. Bottom-hung hopper windows deliver secure, maintainable ventilation for basements and upper floors.

Kanod manufactures casement windows engineered to these specifications, with material and finish options adaptable to diverse project requirements. For projects with atypical site constraints, specialist consultation ensures hinge type, frame material, and glazing selection align with performance specifications. Correctly specified casement windows—regardless of hinge orientation—improve occupant comfort, reduce building energy consumption, and ensure reliable long-term service.
