A large sliding glass door runs on a bottom track. No swing clearance. No floor space lost to door operation. That functional advantage explains its adoption in tight floor plans and modern renovations. Specifying large patio doors targets three measurable outcomes: daylight penetration, unobstructed sightlines, and direct exterior access. This guide documents performance benchmarks, material trade-offs, configuration logic, and a procurement checklist for oversized sliding glass doors.

Performance Benchmarks – Tested, Not Claimed

Three ASTM metrics separate functional doors from problematic ones.

Air infiltration (ASTM E283) – Limit: ≤0.3 cfm/ft². Higher rates cause drafts and energy loss. Many economy units exceed 0.5. Reject them.

Water resistance (ASTM E1105) – Minimum 15 psf. For exposed sites (coastal, high wind), specify ≥20 psf. Lower ratings admit wind‑driven rain.

Thermal transmittance (U‑value, NFRC 100) – Double glazing with Low‑E and argon delivers 1.4–1.6 W/m²K. Triple glazing achieves <1.0 but adds substantial weight. Passive house projects require ≤0.8 with thermally broken frames.

No brochure claim substitutes for a test report. Demand the actual data.

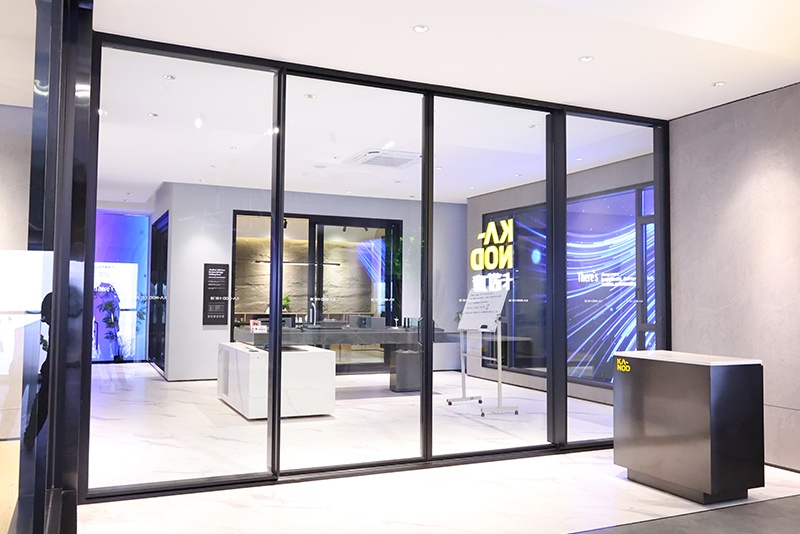

Large Sliding Glass Door

Frame Materials – Aluminum Justifies Itself

Wood needs repainting every 3–5 years, warps with moisture, and requires deep overhangs or cladding. For a large sliding glass door, wood becomes a recurring expense.

Vinyl (uPVC) resists corrosion and costs less initially, but its low modulus of elasticity allows large panels to sag. Tracks deform under heavy insulated glass. Vinyl suits windows, not oversized sliding glass doors.

Aluminum delivers high strength‑to‑weight ratio, dimensional stability, and integrated thermal breaks. Extruded 6063 alloy with ≥20 mm polyamide strips stops conductive heat loss. Kanod uses 70 mm and 85 mm thermal break profiles supporting panels up to 3 m tall. No painting, no warping, no rot.

For any opening exceeding 2.4 m in width or height, aluminum is the only defensible choice.

Door Type Logic – Sliding Wins Most Cases

Folding (bi‑fold) doors clear the full opening but require lateral wall space equal to the stack width. Hardware includes hinges, pivots, and multiple rollers – more parts, higher failure rate. Slower installation. Higher cost.

French doors swing inward or outward. Each leaf needs a 90° floor arc, consuming usable interior area. The center meeting stile blocks the view. Acceptable only for narrow openings (≤1.8 m) in traditional architecture.

Large sliding glass doors use one or two active panels sliding behind fixed panels. Clear opening equals 50–66% of total width – sufficient for furniture passage and side‑by‑side walking. Mechanism: rollers, track, lock. No floor space sacrifice. No center stile in the fixed panel.

Specify sliding for space efficiency, hardware simplicity, and unobstructed views. Specify folding only when a full‑width opening is mandatory and stacking wall space exists.

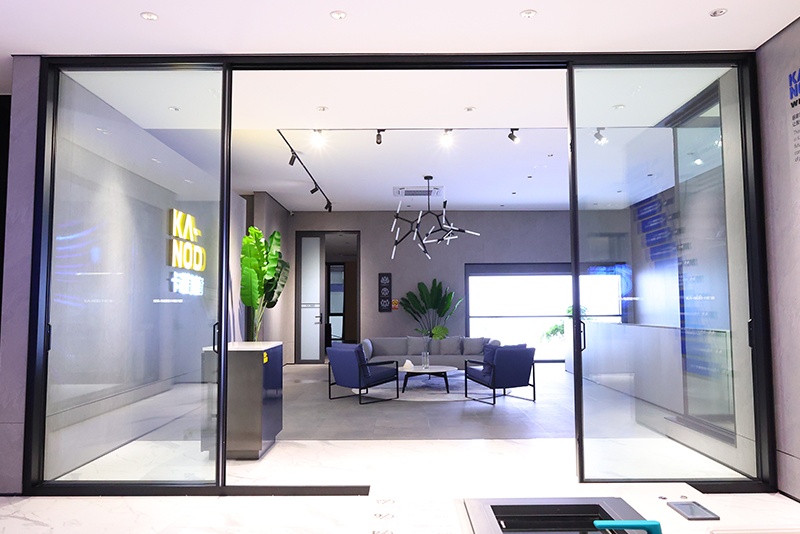

Large Sliding Glass Door

Application Suitability

Living room to backyard – The large sliding glass door extends the interior floor plate. Daylight reaches the rear wall, reducing artificial lighting.

Dining room to terrace – Full opening creates a wide passage for serving. Large patio doors eliminate the bottleneck of swinging leaves.

Master bedroom to garden or balcony – Low‑threshold designs (≤20 mm step) enable wheelchair access and barefoot movement. Tinted glass provides privacy without sacrificing light.

Commercial café frontage – Oversized sliding glass doors handle higher daily cycle counts than folding systems because they contain fewer moving parts. For storefronts that open daily, sliding hardware outlasts folding pivots.

Procurement Checklist

Use this list for any oversized sliding glass door purchase.

• Frame: Extruded aluminum, thermal break ≥20 mm, profile depth ≥70 mm for panels >2.4 m tall. Kanod supplies 70 mm and 85 mm depths.
• Glass: Double glazing minimum. Soft‑coat Low‑E, argon fill ≥90%, warm‑edge spacer. For noise, add one PVB laminated layer. For security, use laminated glass on both faces. Tempered outer pane required by code.
• Rollers: Stainless steel housing and bearings. Tandem wheels (two per corner) for panels >150 kg. Self‑cleaning track with raised guide.
• Locking: Multi‑point (3 or 5 points). Stainless steel rods. Thumb‑turn handle.
• Installation: Certified installers only. Verify sill pan integration with the weather‑resistant barrier. Field errors cause >70% of failures.

Large Sliding Glass Door

Common Specification Errors

Skipping structural review – A 3 m × 3 m large sliding glass door weighs over 300 kg. The header must carry that load plus wind and snow. Consult a structural engineer before framing.

Using a non‑thermal‑break sill – Cold conducts directly into the floor slab. Winter condensation forms on the interior sill. Require a polyamide‑break sill or a non‑metal adapter.

Under‑rating rollers – Standard catalog rollers fail within two years under heavy panels. Demand tandem rollers load‑matched to the panel weight.

Summary

A large sliding glass door performs or fails on air leakage, water resistance, and U‑value. Frame material dictates durability – aluminum is the rational choice for large openings. Door type depends on space and use – sliding offers the best balance of simplicity, reliability, and floor space conservation. Large patio doors constructed with thermally broken aluminum, double glazing, and multi‑point locks deliver decades of low‑maintenance service.
