Introduction

The single swing door is the most frequently specified entry solution across residential, commercial, and institutional construction. Its dominance reflects tangible engineering benefits: mechanical simplicity, spatial efficiency, and low lifecycle cost.

This guide examines the technical distinctions, structural considerations, and selection criteria essential for informed specification.

System Definition

A single swing door consists of one leaf that pivots on a vertical axis through hinges mounted to a fixed frame. Operation is unidirectional—the leaf swings either inward or outward along a defined arc.

Operating Principle

The leaf rotates around hinge bearing points, with swing arcs typically calibrated from 0 to 90 degrees. Heavy-duty hinges can accommodate up to 120 degrees. For passive closure applications—fire-rated exits or climate-controlled environments—spring hinges or concealed floor springs enable automatic closing without electronic controls.

Core Components

Five interdependent elements determine system performance:

1. Leaf – The primary barrier, fabricated from wood, steel, aluminum, or composite materials.
2. Frame – The anchorage structure transferring loads to the wall substrate.
3. Hinges – Bearing interfaces supporting leaf mass while maintaining axial alignment.
4. Locking Assembly – The mechanism securing the leaf against the strike plate.
5. Perimeter Seals – Gaskets and weatherstripping controlling air leakage and sound transmission.

Manufacturers with rigorous quality systems, including Kanod, enforce dimensional tolerances and material certifications throughout production.

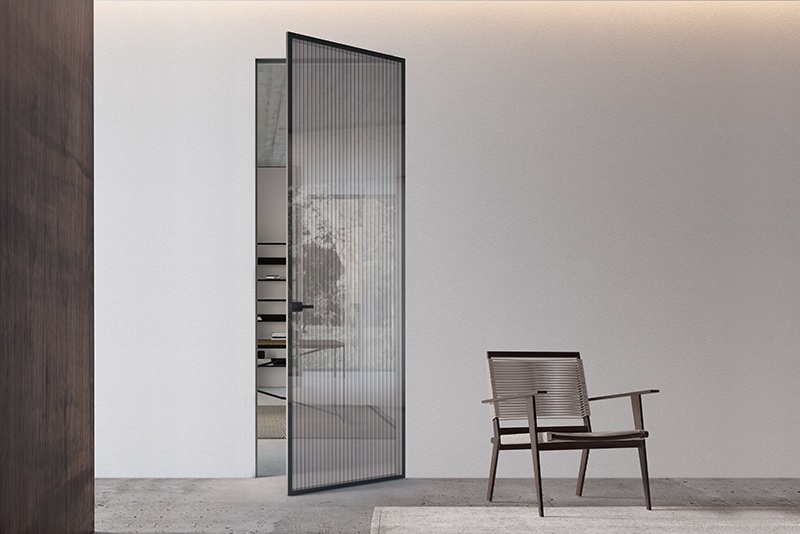

Inswing vs Outswing – Single Swing Guide

Inswing vs Outswing

Directional choice affects space utilization, user convenience, and code compliance.

Inswing Configuration

Inswing doors open into the interior. This arrangement is advantageous for exterior applications in snow-prone regions, as the leaf remains clear of external accumulation. It is standard for private interiors where corridor clearance must be maintained.

Typical applications: Bedrooms, bathrooms, interior rooms with limited exterior wall clearance.

Outswing Configuration

Outswing doors project outward. This configuration suits spaces where interior floor area must be maximized or where inward swing conflicts with fixed elements.

Typical applications: Compact spaces, kitchens, utility rooms, exterior entries requiring weather resistance.

Selection Framework

Evaluate these variables:

• Clearance: Measure unobstructed radius on both sides. Inswing typically requires clearance equal to leaf width (≈90 cm) within the room.
• Obstructions: Identify permanent elements—radiators, switches, fixtures—within the swing path.
• Traffic flow: High-traffic corridors benefit from doors opening away from primary circulation.
• Codes: Reference IBC or local regulations for net clear opening width on accessible routes.

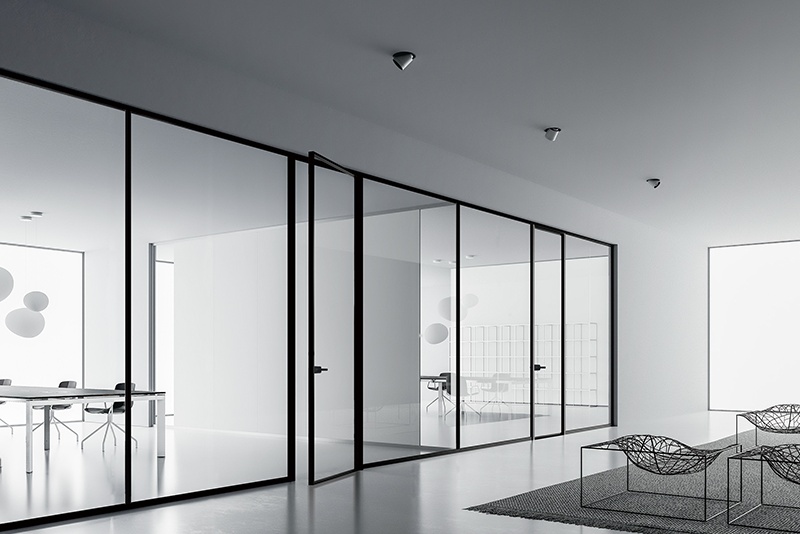

Inswing vs Outswing – Single Swing Guide

Single vs Double Swing

For openings exceeding 120 cm, single and double swing configurations require evaluation.

Leaf count and load distribution: Single leaf carries full mass on two to three hinges. Double swing distributes width across two independently supported leaves, reducing individual deflection.

Operational mechanics: Single swing operates through single-axis rotation. Double swing can be single-action or double-action. Double-action introduces inter-leaf coordination complexity and increases misalignment risk over time.

Spatial footprint: Single swing requires swing radius on one side only. Double swing requires clearance on both sides, doubling the spatial buffer.

Application mapping:

• Single swing is recommended for openings up to 120 cm with intermittent traffic and space constraints. Typical: office cubicles, bedrooms, examination rooms.
• Double swing is warranted for openings exceeding 140 cm requiring equipment passage or high occupant flow. Typical: conference halls, hospital wards, main entrances.

Cost and installation: Single swing involves fewer components, shorter installation time, and less long-term adjustment.

Performance Advantages

Reliability – With movement reduced to a single rotational axis, failure points are minimized. No tracks or rollers require maintenance, supporting over 10,000 cycles under standard testing.

Sealing – Leaf compression against the frame stop creates a continuous seal outperforming sliding alternatives in air infiltration resistance. This yields lower HVAC loads, improved acoustic privacy (STC 35 with suitable materials), and effective particulate control.

Compatibility – Without floor tracks or overhead guides, single swing doors adapt to uneven thresholds, varied floor finishes, and non-standard wall constructions.

Customization – Available in hardwoods, powder-coated steel, and thermally broken aluminum. Hardware finishes include brushed nickel, oil-rubbed bronze, and matte black.

Inswing vs Outswing – Single Swing Guide

Applications by Sector

Residential: Bedrooms, bathrooms, kitchens, balconies, service entrances.

Commercial: Offices, meeting rooms, hotel guestrooms, retail stockrooms.

Institutional: Classrooms, medical consulting rooms, libraries, administrative offices.

Conclusion

The single swing door’s market leadership is grounded in proven engineering advantages: kinematic simplicity, superior sealing, and efficient space utilization. Whether specified as inswing or outswing, this system delivers reliable performance with minimal lifecycle costs.

Kanod manufactures single swing doors to CE certification standards, from material sourcing through final inspection. For project-specific requirements—custom sizing, specialized hardware, or unique finishes—consult Kanod’s technical team to align product characteristics with design intent.
